HUUM HIVE Mini 6.0kW Sauna Heater Package

Authorized Dealer
Full Warranty Included

The HUUM HIVE Mini 6STU sauna heater package comes complete with the traditionally designed HIVE Mini 6kW sauna heater, UKU control (Wi-Fi optional), and sauna stones. This package has everything you need to build your dream sauna experience and has been engineered for sauna rooms up to 318 cubic feet (CF).

Description

The HUUM HIVE Mini 6STU sauna heater package features all the necessities that will give your sauna space a touch of tradition. This all-inclusive package includes the HIVE Mini 6kW sauna heater, UKU control with optional Wi-Fi, and 330 lbs of sauna stones. It is engineered for sauna rooms up to 318 cubic feet (CF).

Precision-engineered and crafted in Estonia for a true European sauna experience.

Features

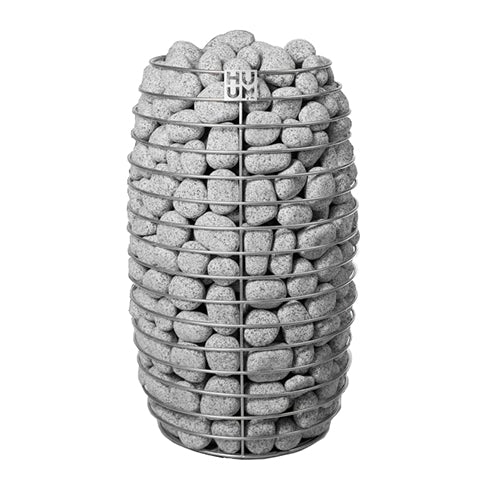

HIVE Mini 6.0kW Sauna Heater

  • Elegant design
  • 240V/1PH operation
  • For sauna rooms from 177 to 318 cu. ft.
  • Works with UKU controls
  • 330 pound stone capacity
  • Direct contact between stones and heating elements
  • More exposed stones create a longer and milder heat
  • Stainless steel construction
  • Stainless steel, industrial quality heating elements
  • Floor model with adjustable legs

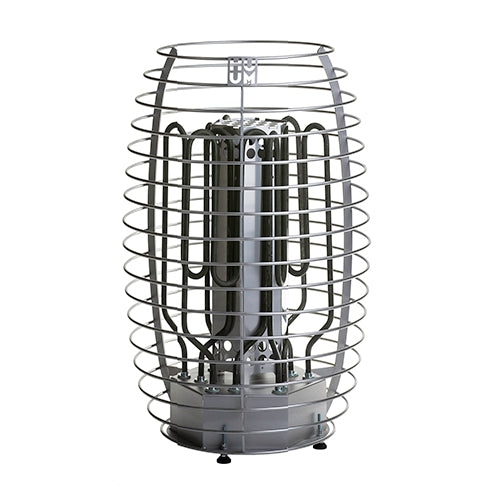

  • Air tunnel shortens heat-up time and increases life of heating elements
  • SGS listed
  • Designed, engineered, and made in Estonia
  • Dimensions: 18.1"Diameter (460mm) x 29.5"H (750mm)
  • Limited 3-year residential warranty and limited 1-year commercial warranty (excluding elements)

UKU Control

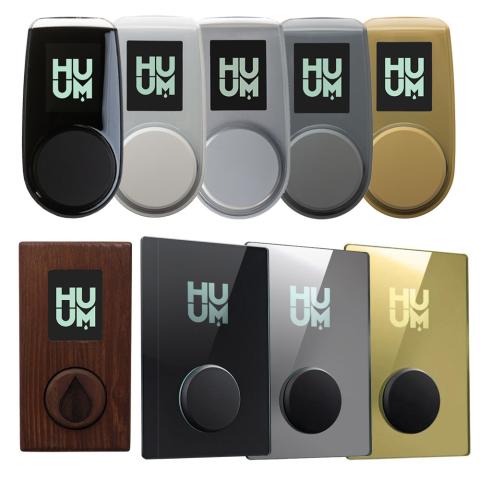

  • Sleek black control display panel
  • Multiple color options available (additional charges apply)
  • Settable on/off, time, temperature, and delay
  • Settable temperature range of 104-230°F
  • Delayed start up to 48hrs in advance
  • Optional built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
  • 8 language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
  • Inside/outside sauna room installation
  • Optional smart heating setting
  • Available decorative control display panels
  • Displays set temperature and room temperature
  • Temperature sensor
  • Door sensor to keep the heat inside the room
  • Remotely located main control module
  • Connects to lights and ventilation
  • Overheat protection
  • Child safety lock
  • Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
  • Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)
  • Limited 3-year residential warranty and limited 1-year commercial warranty

Stones 24

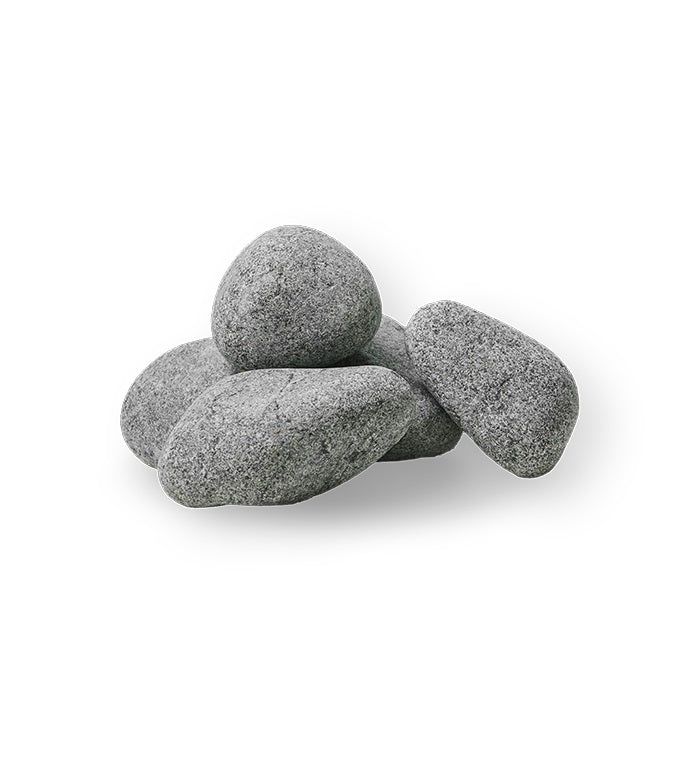

  • Olivine diabase sauna stones
  • Rounded shape to complement heater design
  • Durable with high-heat capacity
  • Stones range from 2" to 4" (5-10 cm)

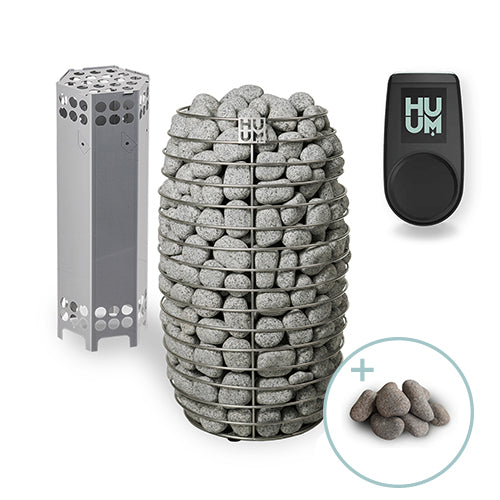

Includes

HIVE Mini 6.0kW Sauna Heater

  • 6.0kW Sauna Heater
  • Adjustable Legs
  • Pre-Installed HIVE Air Tunnel
  • Installation and Operation Manual
  • 3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty (Excluding Elements)

UKU Control

  • Black Control Console
  • Main Control Module
  • Temperature Sensor
  • Door Sensor
  • Control Display Panel Cable
  • Temperature Sensor Cable
  • Door Sensor Cable
  • Installation and Operation Manual
  • 3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty

Stones 24

  • 330 lbs of 2" - 4" (5-10 cm) Round Sauna Stones

Specifications

Model

HIVE MINI 6STU PKG

HIVE Mini 6



Kilowatt Rating

6.0kW

Minimum Cubic Feet

177

Maximum Cubic Feet

318

Heater Weight

35.9 lbs

Shipping Weight with Sauna Stones

365.9 lbs

240V, Single-Phase Amperage

25

Circuit Breaker

30

Wire Size AWG

10

Diameter

18.1" (460mm)

Height

29.5" (750mm)

UKU Control



Minimum Temperature Setting

104°F

Maximum Temperature Setting

230°F

Shipping Weight

20 lbs

Console Dimensions



Width

2.2" (55mm)

Depth

0.9" (22mm)

Height

4.1" (105mm)

Main Module Dimensions



Width

3.5" (90mm)

Depth

2.3" (58mm)

Height

5.6" (142mm)

Display Panel Cable



Length

9.8 ft

AWG

22

Temp Sensor Cable



Length

16.4 ft

AWG

24

Door Sensor Cable



Length

16.4 ft

AWG

24

Technical

HIVE Installation & Operation Manual

HIVE Elements Required

UKU Installation & Operation Manual

UKU Install Diagram

UKU Glass Mirror Install Diagram

Extension Installation Manual

HUUM Stone Requirements.pdf

HUUM-Warranty.pdf

Size Your Sauna



UKU Installation Video
