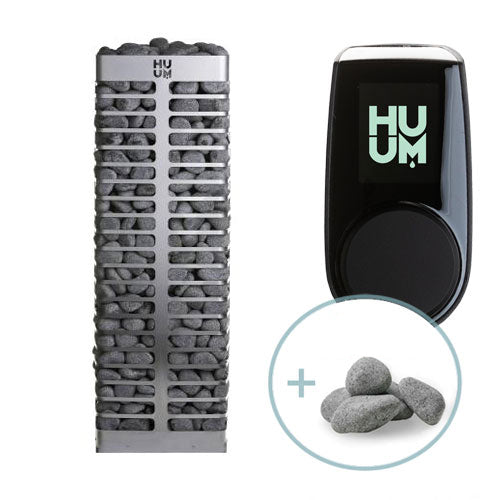

HUUM STEEL 6.0kW Sauna Heater Package

Authorized Dealer
Full Warranty Included

This HUUM Steel sauna heater package comes complete with the traditionally designed STEEL 6.0kW sauna heater, UKU control (WiFi optional), and sauna stones - everything you need to build your dream sauna experience. The package has been combined for use in sauna rooms up to 353 cubic feet (CF).

Description

This HUUM Steel sauna heater package comes complete with the traditionally designed STEEL 6.0kW sauna heater, UKU control (WiFi optional), and sauna stones - everything you need to build your dream sauna experience. The package has been combined for use in sauna rooms up to 353 cubic feet (CF).

Features

STEEL 6.0kW Sauna Heater

  • Sleek design
  • Suitable for use in saunas with modest space
  • Small safety distances
  • Heats up to 25% faster due to internal air duct
  • For sauna rooms from 212 to 353 cu. ft.
  • Works with UKU controls (sold separately)
  • 331 pound stone capacity (required 10 boxes sold separately)
  • Direct contact between stones and heating elements
  • More exposed stones create a longer and milder heat
  • Stainless steel construction
  • Stainless steel, industrial quality heating elements
  • Floor model
  • Designed, engineered, and made in Estonia
  • Dimensions: 12.6" W (320mm) x 12.6" W (320mm) x 38.4" H (975mm)
  • Limited 3-year residential warranty and limited 1-year commercial warranty (excluding elements)

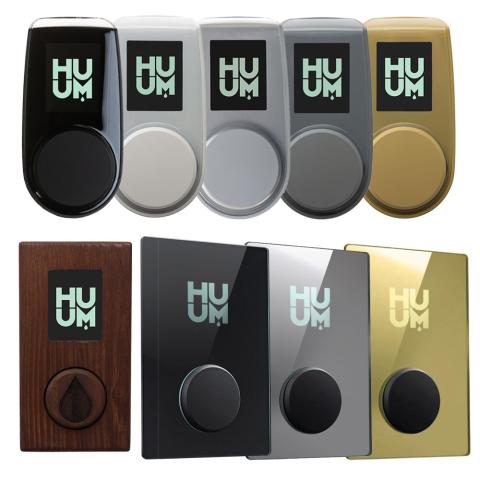

UKU

  • Sleek Black control display panel
  • Multiple Color Options available (additional charges apply)
  • Settable on/off, time, temperature, and delay
  • Settable temperature range of 104-230F
  • Delayed start up to 48hrs in advance
  • Optional Built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
  • 8 Language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
  • Inside/outside sauna room installation
  • Optional smart heating setting
  • Available decorative control display panels
  • Displays set temperature and room temperature
  • Temperature sensor
  • Door sensor to keep the heat inside the room
  • Remotely located main control module
  • Connects to lights and ventilation
  • Overheat protection
  • Child safety lock
  • Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
  • Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)

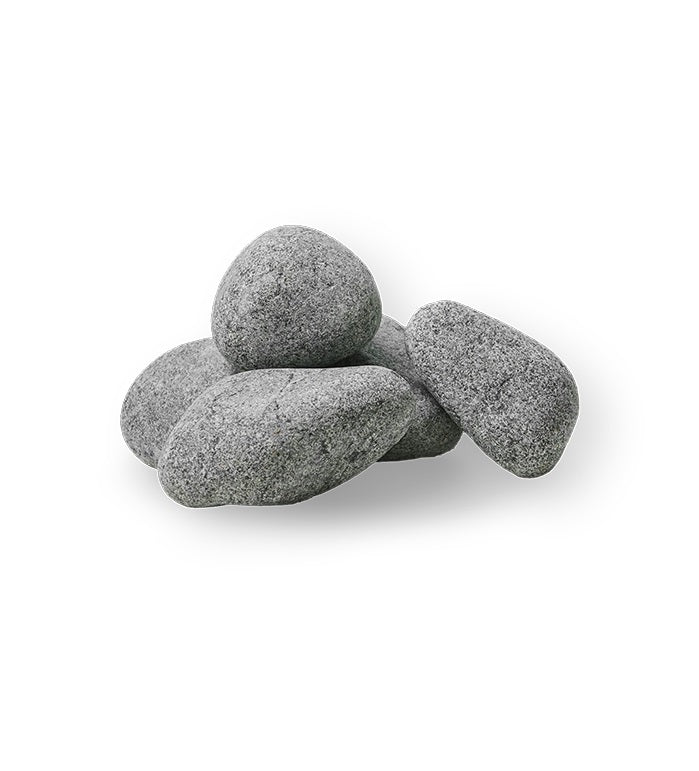

Stones 12

  • Olivine diabase sauna stones
  • Rounded shape to complement heater design
  • Durable with high-heat capacity
  • Stones range from 1" to 2" (3-5 cm)

Includes

STEEL 6.0kW Sauna Heater

  • 6.0kW sauna heater
  • Installation and operation manual
  • 3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty (Excluding Elements)

UKU

  • Black Control console
  • Main control module
  • Temperature sensor
  • Door sensor
  • Control display panel cable
  • Temperature sensor cable
  • Door sensor cable
  • Installation and operation manual
  • 3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty

Stones 12

  • 330 lbs of 1" - 2" (3-5 cm) of rounded olivine sauna stones.

Specifications

Model

STEEL 6.0STU Pkg

STEEL 6.0kW



Kilowatt Rating

6.0 KW

Minimum Cubic Feet

212 CF

Maximum Cubic Feet

353 CF

Heater Weight

33 lbs

Shipping Weight with Sauna Stones

364 lbs

240V, Single Phase Amperage

--

Width

12.6" W (320mm)

Depth

12.6" W (320mm)

Height

38.4" H (975mm)

UKU



Minimum Temperature Setting

104 F

Maximum Temperature Setting

230 F

Shipping Weight

20 lbs

Console Dimensions



Width

2.2" (55mm)

Depth

0.9" (22mm)

Height

4.1" (105mm)

Main Module Dimensions



Width

3.5" (90mm)

Depth

2.3" (58mm)

Height

5.6" (142mm)

Display Panel Cable



Length

9.8 ft

AWG

22

Temp Sensor Cable



Length

16.4 ft

AWG

24

Door Sensor Cable



Length

16.4 ft

AWG

24
