Description

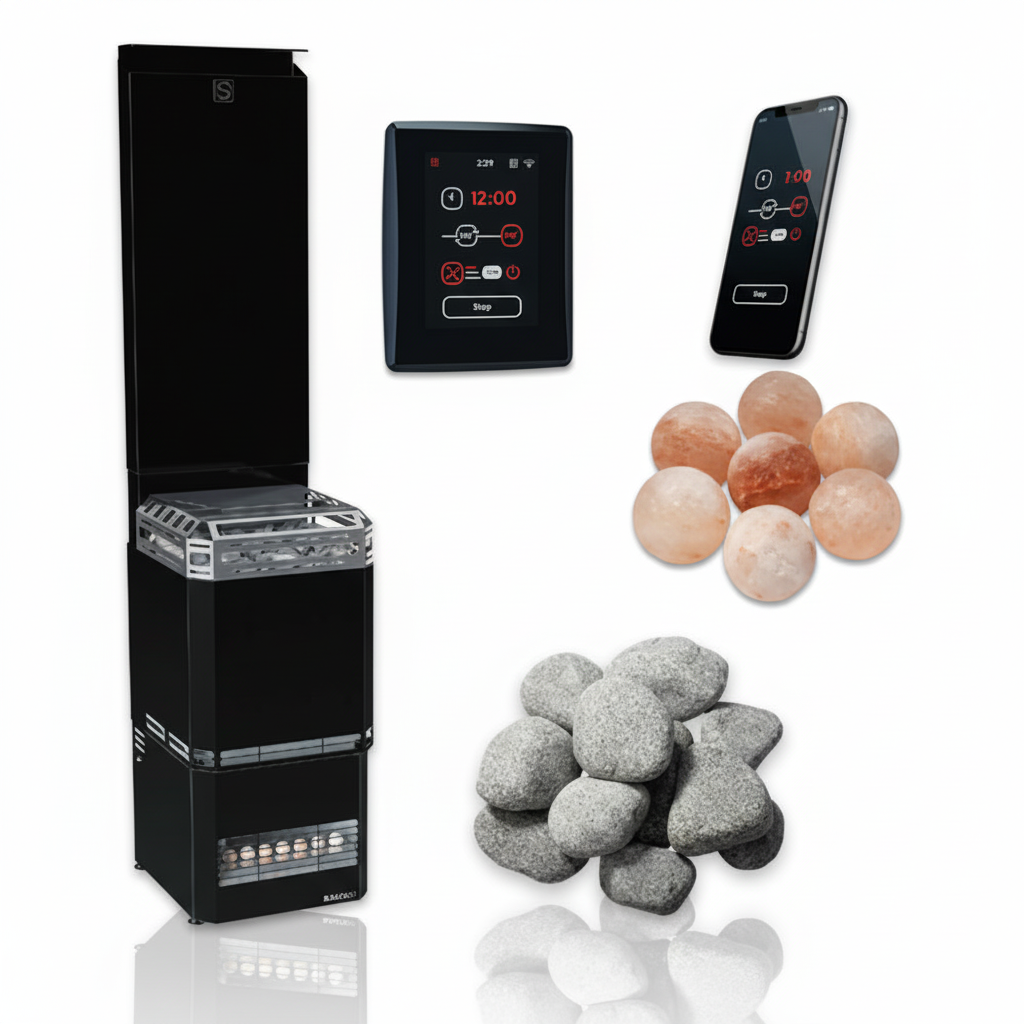

The Saunum Air L 10 Sauna Heater Package comes complete with the Air L 10 Sauna Heater, AirIQ Wi-Fi Control, Sauna Stones, and Himalayan Salt Spheres. Air L 10 is a unique heater with a sauna climate regulating system that is ideal for creating an extraordinary sauna session in a more intensively used sauna. The large stone volume and the patented air-blending system ensure exceptional steam that is soft and long, and evenly distributed throughout the sauna.

Thanks to the oxygen-rich air, breathing is easier, and the negative salt ions from the spheres are beneficial for your respiratory system and skin. This 9.8kW heater package is designed for sauna rooms from 247 to 459 cubic feet (CF).

Features

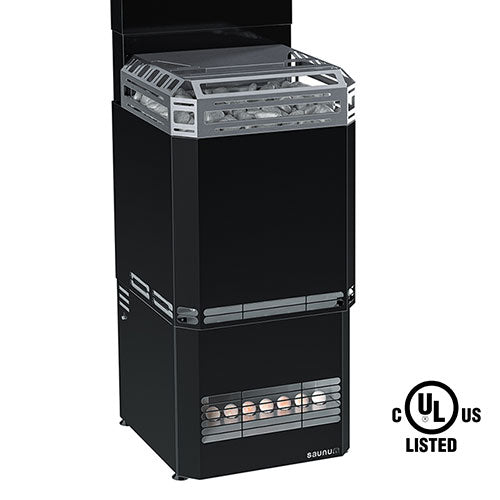

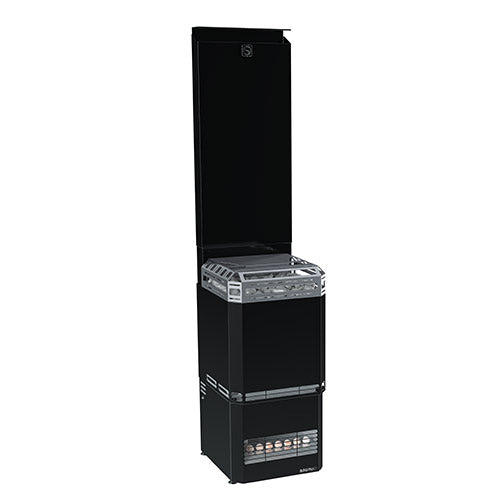

Air L 10 Sauna Heater

Revolutionary Air Mixing Technology – No more cold feet! No other sauna heater has Saunum's patented air blending system, which mixes cooler, oxygen-rich air from the floor with hot, oxygen-poor air off the ceiling and distributes it throughout the room for a more even temperature and better breathability. Saunum ensures that heat and oxygen are more consistent from head to toe.
Scandinavian Design – With its elegant black steel finish, Saunum combines contemporary Scandinavian design and premium-quality materials.

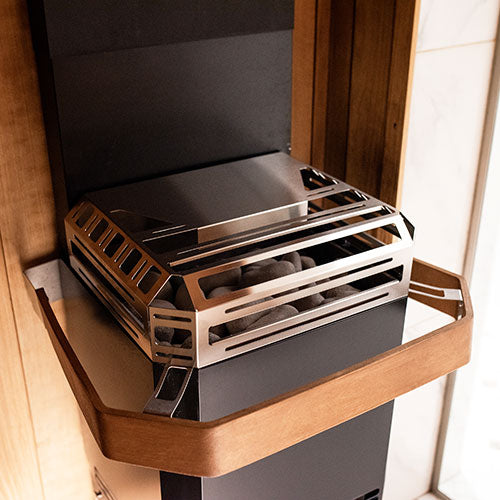

Massive Stone Capacity – Stones are the heart of a Nordic sauna. Greater stone capacity results in softer, more even heat, and can produce more luxurious steam. The Air L boasts a massive 198 pound stone capacity.
Himalayan Salt Reservoir – Himalayan Salt Spheres are positioned within the air stream so that salt ions are propelled throughout the sauna to deliver health benefits more effectively.
Wi-Fi Control – The available AirIQ Wi-Fi Control allows you to activate a tailored sauna profile and have your custom sauna ready at the time that you specify on your mobile device.
Dry your Sauna – Go ahead, toss water onto the rocks! Saunum is engineered for water-tossing, and when you're done enjoying the steam, the patented fan system will conveniently help dry your sauna.
UL Certification – Safety and reliability are priorities at Saunum, and each product is engineered to exceed strict UL standards.
Available Aromatherapy – Add another sensory layer with Saunum's optional aromatherapy system, which infuses aroma into the steam to further transform your experience.
For sauna rooms from 247 to 459 cu. ft.

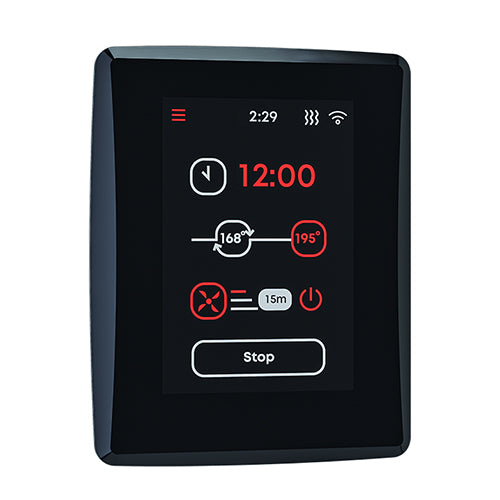

AirIQ Wi-Fi Control

Temperature selection ranges from 104°F - 194°F (40°C - 90°C)
Allows you to set the operating time of the heater: Up to 1 hour in a private sauna, up to 6 hours in a public sauna
Allows you to select up to 3 preset sauna settings: Selectable temperature, time, climate device speed
Classic Nordic Steam Sauna
- For temperatures from 140°F - 194°F (60°C - 90°C). Valve of the Climate Device open to 25% with speed level 1.
Humid Steam-Rich Sauna
- For temperatures from 113°F - 140°F (45°C - 60°C). Valve of the Climate Device open to 100% with speed level 2 or 3.
Mild, Relaxing Sauna
- For temperatures from 104°F - 131°F (40°C - 55°C). Valve of the Climate Device open to 25% with speed level 1.
AirIQ Wi-Fi allows for sauna session scheduling for a specific day, time, and sauna type for the week
Built-in Wi-Fi interface for Saunum mobile app available on AppStore and Google Play
Modbus integration for smart home connection
Notifications will be conveniently displayed directly onto your mobile device via the Saunum mobile app
- Sauna is Ready
- Heating Status
- Door is Open
- Overheating Protection Applied
Multi-language menu includes English, German, Estonian, Finnish, Russian, Swedish, and Slovenian
Outside sauna room installation
Screen lock
Child safety lock
Temperature sensor
Door sensor

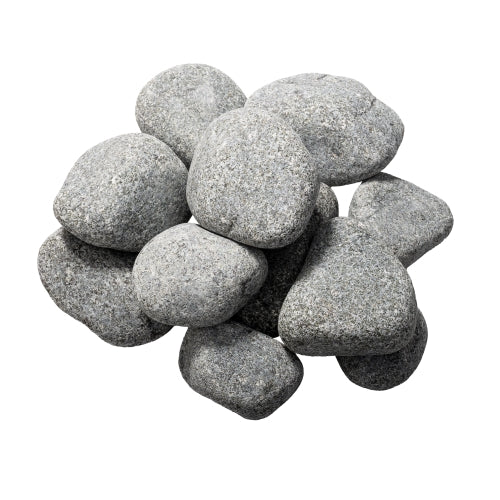

Sauna Stones

High-quality olivine diabase raw stone
Rounded, pre-washed, and ready to use
Durable with high-heat capacity
Stones range from 2" to 4" (5-10 cm)

Includes

Air L 10 Sauna Heater

9.8kW Sauna Heater

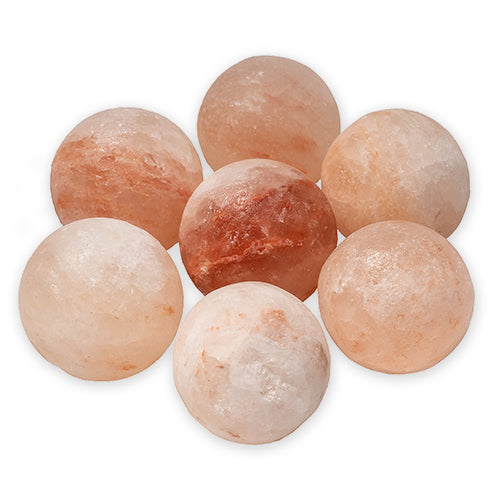

Himalayan Salt Spheres (7)
Himalayan Salt Tray
Hot Air Intake Cap
Hot Air Intake
Stone Basket
Air Outake Grille
Cool Air Intake Valve
Protective Grill
Temperature Sensor
Installation and Operation Manual
2-Year Limited Warranty (Consumer Use)

AirIQ Wi-Fi Control

Soft-Touch Display Panel (Wi-Fi App-Based Updates and Operation)
Wall Mounting Plate and Fasteners
Power Unit
Installation and Operation Manual
2-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)

Sauna Stones

198 lbs of 2" to 4" (5-10 cm) Round Sauna Stones

Specifications

Model

AIR L 10 PKG

Heat Equalizing System
Model	AIR L 10
Certification/Global Safety Rating	UL (Underwriters Laboratories)
Heat/Steam Equalizer Module	3-Speeds, Whisper-Quiet Operation
Ceiling Hot Air Intake	17.72" x 4" (450.09 x 101.6mm)
Cool Air Intake Type	Adjustable Valve, Side-Mounted, 12" (304.8mm) Off Floor
Cool Air Intake Size	2" x 2.75" (50.8 x 69.85mm)
Blended Air Output	4.31" x 14.13" (109.47 x 358.9mm)
Himalayan Salt and Aroma Tray Type	Removable, Slotted
Himalayan Salt and Aroma Tray Size	16.5" x 4.5" (419.1 x 111.76mm)

Sauna Heater System
Model	AIR L 10
Certification/Global Safety Rating	UL (Underwriters Laboratories)
Room Size	247-459 cu.ft.
Wattage Rating	9800
Operating Voltage	240V
Phase	Single
Amperage	41.66A
Circuit Breaker	50A
Wire Size to Power Unit	#6 +N + G
Minimum Ceiling Height	71" (1803mm)
Stone Capacity	198 lbs (90 kg)
Stone Size	2" - 4" (5-10 cm)
Heater Width	19" (483mm)
Heater Depth	18.1" (460mm)
Heater Height (Including Telescopic Air Intake)	72.25-95" (1850-2400mm)
Heater Weight	147 lbs (67 kg)
Shipping Weight with Stones	345 lbs (157 kg)

Display Panel
Model	AIRIQ WI-FI
Certification/Global Safety Rating	UL (Underwriters Laboratories)
Type	Digital, Soft-Touch
Response	Tactile with Haptic Feedback Technology
Language Selection	16-Languages
Wi-Fi Capability	Wi-Fi, App-Based Updates, and Operation
Notifications	Sauna is Ready, Heater Status, Open Door, and Overheating Protection
Safety Features	Admin, Screen Lock, Door Sensor, and Overheating Protection
Color	Nordic Black
Heat Equalizing Control	3-Speed Adjustability
Width	3.3" (83.82mm)
Depth	.8" (20.32mm)
Height	4.1" (104.14mm)
IP Rating	IP20
Minimum Temperature Setting	104°F (40°C)
Maximum Temperature Setting	194°F (90°C)
Duration Timer	1 - 6 Hours
Display Panel Cable	4-Conductor Cable (150°C), 20AWG, 15' (475.2 cm)
Door Sensor and Cable Assembly (Included with Heater)	2-Conductor Cable (150°), 20AWG, 9.83' (299.62 cm)
Door Sensor Probe	1"L x .24"Diameter (25 x 6mm)
Operating Temperature Range	-4 - 145°F (-20 - 62°C)
Programmability	Weekly Scheduling with 3 Programmable Sessions
Temperature Settings	Fahrenheit or Celsius
Region Settings	North American and European Versions
Room Temperature Sensor (Included with Heater)	Pre-Mounted with Integrated Cable (150°C), 9.5' (289.56 cm)
