HUUM DROP 7.5kW Sauna Heater Package

Authorized Dealer
Full Warranty Included

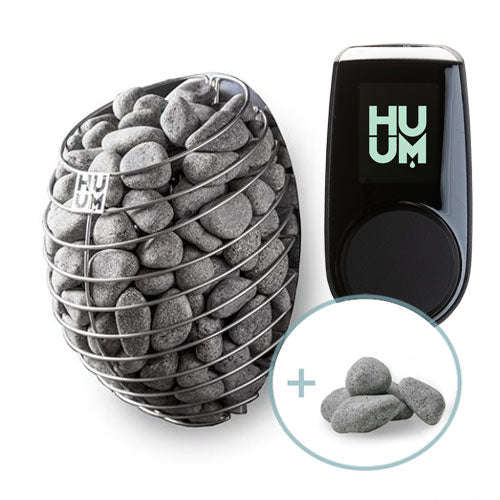

This HUUM DROP sauna heater package comes complete with the award-winning, compact DROP 7.5kW sauna heater, UKU control (WiFi optional), and sauna stones - everything you need to transform your sauna space into your dream sauna sanctity. The package has been combined for use in sauna rooms up to 424 cubic feet (CF).

Description

This HUUM DROP sauna heater package comes complete with the award-winning, compact  HIVE DROP 7.5kW sauna heater, UKU control (WiFi optional), and sauna stones - everything you need to transform your sauna space into your dream sauna sanctity. The package has been combined for use in sauna rooms up to 441 cubic feet (CF).

Features

DROP 7.5kW Sauna Heater

  • Unique water drop design
  • 240V/1PH operation
  • For sauna rooms from 247 to 424 cu. ft.
  • Works with UKU controls (sold separately)
  • 122 pound stone capacity (required 4 boxes sold separately)
  • Direct contact between stones and heating elements
  • More exposed stones create a longer and milder heat
  • Stainless steel construction
  • Stainless steel, industrial quality heating elements

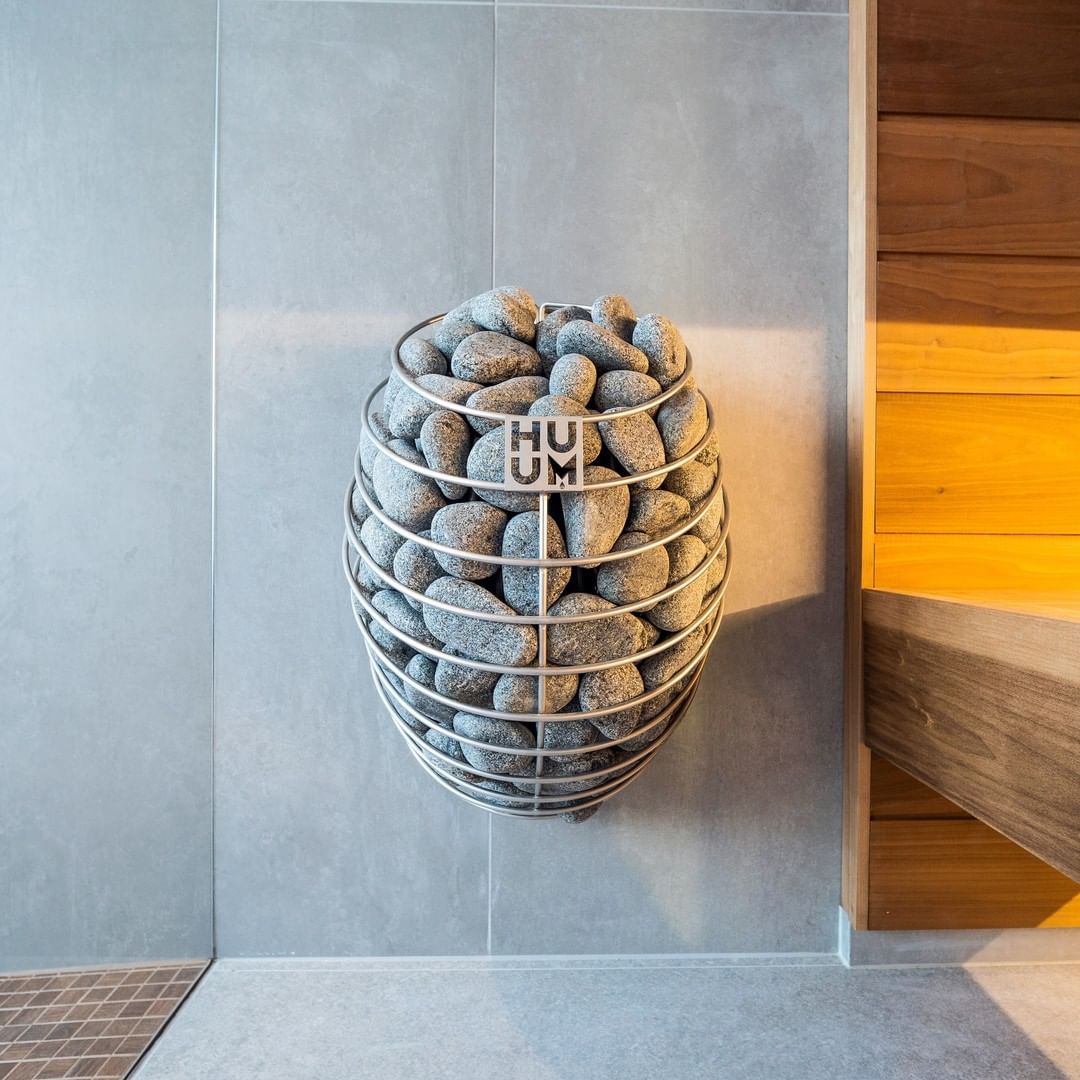

  • Wall-mounted design
  • Designed, engineered, and made in Estonia
  • Dimensions: 15"W (390mm) x 13"D (335mm) x 23"H (590mm)
  • SGS Listed
  • Limited 3-year residential warranty and limited 1-year commercial warranty (excluding elements)

UKU

  • Sleek Black control display panel

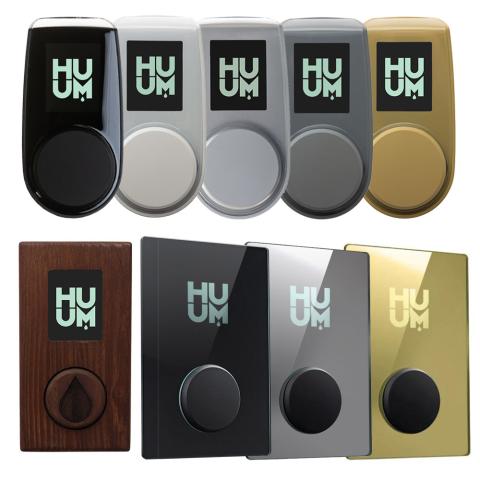

  • Multiple Color Options available (additional charges apply)
  • Settable on/off, time, temperature, and delay
  • Settable temperature range of 104-230F
  • Delayed start up to 48hrs in advance
  • Optional Built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
  • 8 Language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
  • Inside/outside sauna room installation
  • Optional smart heating setting
  • Available decorative control display panels
  • Displays set temperature and room temperature
  • Temperature sensor
  • Door sensor to keep the heat inside the room
  • Remotely located main control module
  • Connects to lights and ventilation
  • Overheat protection
  • Child safety lock
  • Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
  • Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)

Stones 24

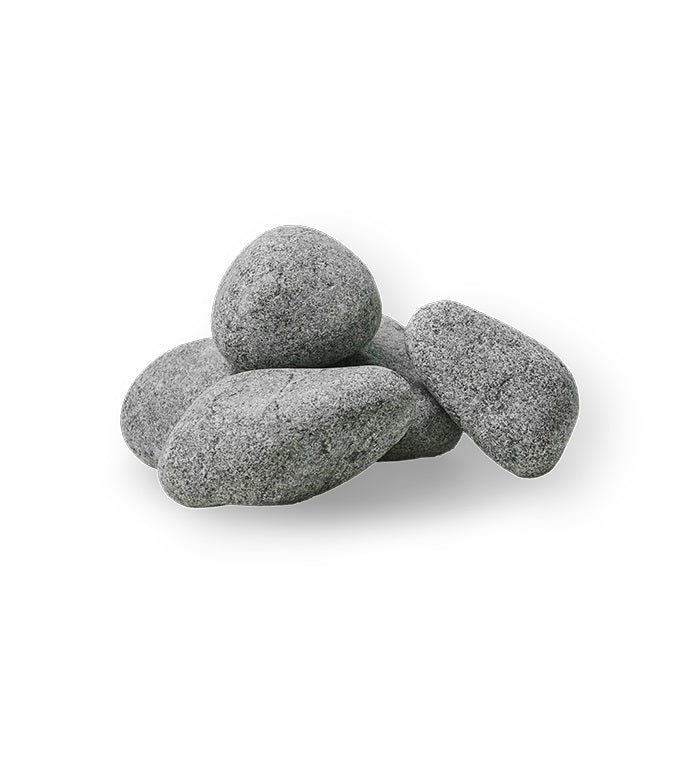

  • Olivine diabase sauna stones
  • Rounded shape to complement heater design
  • Durable with high-heat capacity
  • Stones range from 2" to 4" (5-10 cm)

Includes

DROP 7.5kW Sauna Heater

  • 7.5kW Sauna heater
  • Wall-mount bracket
  • Installation and operation manual
  • 3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty (Excluding Elements)

UKU

  • Black Control console
  • Main control module
  • Temperature sensor
  • Door sensor
  • Control display panel cable
  • Temperature sensor cable
  • Door sensor cable
  • Installation and operation manual
  • 3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty

Stones 24

  • 132 lbs of 2" - 4" (5-10 cm) round Olivine sauna stones

Specifications

Model

DROP 7.5STU Pkg

Model

DROP 7.5

Kilowatt Rating

7.5 KW

Minimum Cubic Feet

247 CF

Maximum Cubic Feet

424 CF

Heater Weight

25 lbs

Shipping Weight with Sauna Stones

157 lbs

240V, Single Phase Amperage

--

Circuit Breaker Amperage

--

Wire Size

--

Width

15"W (390mm)

Depth

13"D (335mm)

Height

23"H (590mm)

UKU



Minimum Temperature Setting

104 F

Maximum Temperature Setting

230 F

Shipping Weight

20 lbs

Console Dimensions



Width

2.2" (55mm)

Depth

0.9" (22mm)

Height

4.1" (105mm)

Main Module Dimensions



Width

3.5" (90mm)

Depth

2.3" (58mm)

Height

5.6" (142mm)

Display Panel Cable



Length

9.8 ft

AWG

22

Temp Sensor Cable



Length

16.4 ft

AWG

24

Door Sensor Cable



Length

16.4 ft

AWG

24
